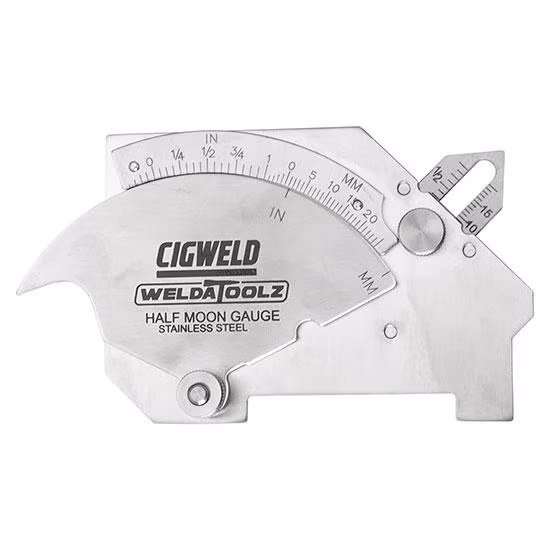

WeldaToolz Half-Moon stainless steel Bridge-Cam Style welding gauge

WELDATOOLZ offers a reliable range of measurement gauges designed for applications in general welding, steel assembly, construction, fabrication, shipbuilding, bridge building, and more. Each gauge is certified annually by an Australian NATA-accredited laboratory to ensure consistent and precise measurement accuracy.

Features:

• Dual-Unit Measurement: Certified annually for accuracy, providing measurements in both inches and millimeters for added versatility.
• Comprehensive Range: Facilitates general linear measurements up to 50mm (2 inches), ideal for a variety of welding applications.
• Specialized Depth Inspection: Accurately measures undercut depth, excess weld metal (capping size), fillet leg length, fillet weld throat size, and weld reinforcement.
• Angle and Misalignment Assessment: Capable of measuring preparation angles (0º to 60º) and misalignment (high-low) with precision.
• Protective Pouch Included: Comes with a durable pouch for secure storage and portability.

Specifications:

• Model: Half Moon (CAM Style)
• Material: Stainless Steel
• Leg Length: 25mm
• Throat Thickness: 20mm
• Undercut Depth: 25mm
• Length Accuracy: ±0.01mm
• Groove (Bevel) Angle Range: 0–60°, graduated in 5° increments
