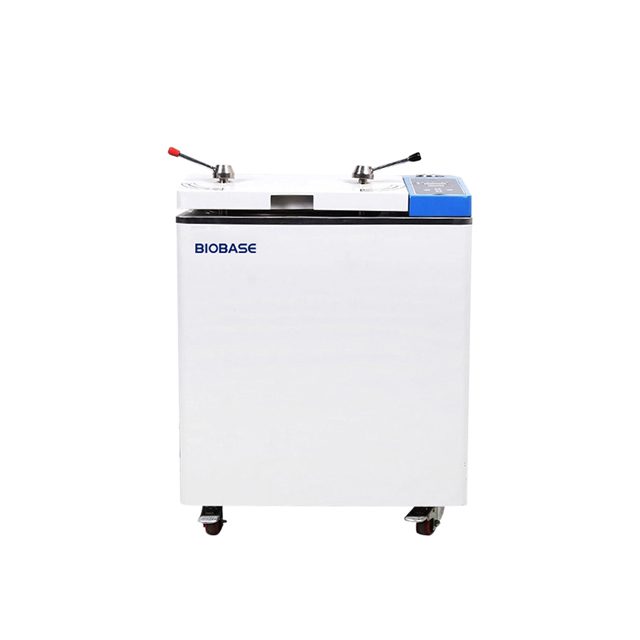

Vertical Autoclave Model BKQ-Z100

Vertical Autoclave Model BKQ-Z100

Safety Features:

1. Over pressure, safety valve can automatically open to release pressure.

2. Over temperature, the system will stop heating automatically and start alarm.

4. Anti dry-out function.��If water level is too low, heating stops and error code displays on screen.

5. Over current, over voltage��or electric leakage��protection apparatus-air switch.

Technical Features:

1.��Complete protection system.

2. Flip-open door��structure with spring booster, easy to open.

3.��LED displays inner��temperature, time and error codes.

4.��Automatic exhausting steam function.

5.��Reliable mechanical safety interlock feature.

6.��External material: Cold rolled steel with anti-bacteria powder coating.

7.��Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber,��and liquid.

8.��Door cover is wrapped completely, to prevent scald effectively.

9.��Radial self-expanding silicone rubber seals with high effect and long using life.

10. Optional printer for recording sterilization data.

11.Optional�� stainless stee bucket[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Model	BKQ-Z30I	BKQ-Z50I	BKQ-Z75I	BKQ-Z100I
Capacity	30L	50L	75L	100L
Chamber size(mm)	��385*412	��385*515	��385*715	��385*915
ChamberMaterial	SUS304
MaxPressure	0.3MPa
RatedWorkingPressure	0.22MPa
MaxTemperature	150���
WorkingTempRange	105���134���
Temp.Display Accuracy	��0.1���
TimingRange	0-999min
DynamicPulseExhaustTime	0~9times
WaterRequirement	Distilled water or demineralized water
Standard Accessories	��SS basket*1pcs,��SS tray*1pcs		SS basket*2pcs,��SS tray*1pcs
Consumption	4KW
PowerSupply	AC110/220V��10%,��50/60Hz
External��Size(W*D*H)mm	645*610*710	645*610*850	645*610*1000	645*610*1200
Packing Size(W*D*H)mm	750*745*950	750*745*1100	750*745*1240	750*745*1450
GrossWeight(kg)	100	103	114	122

Note: It is applicable to the altitude below 3,500m[/vc_column_text][/vc_column][/vc_row]
