Cigweld Transmig 500HD Welder – Water Cooled

Cigweld Transmig 500HD Water Cooled is a heavy-duty multiprocess welding system built for demanding industrial fabrication and high-volume welding tasks. This Cigweld multiprocess inverter delivers outstanding performance across MIG, STICK, DC Lift TIG, and gouging applications. The unit is backed by a 5-year warranty.

For applications involving constant high amperage, a water-cooled package is the ideal choice. Cigweld has developed a water-cooled MIG gun that uses a lighter power cable, helping to enhance fabricator performance by reducing fatigue, minimising heat, and extending consumable life.

This 3-phase 500A industrial welder is intended for professional and industrial environments and is not suited for DIY use.

Also available in a air-cooled version:
Cigweld Transmig 500HD Multiprocess Welder Air Cooled (Code: W1400500)

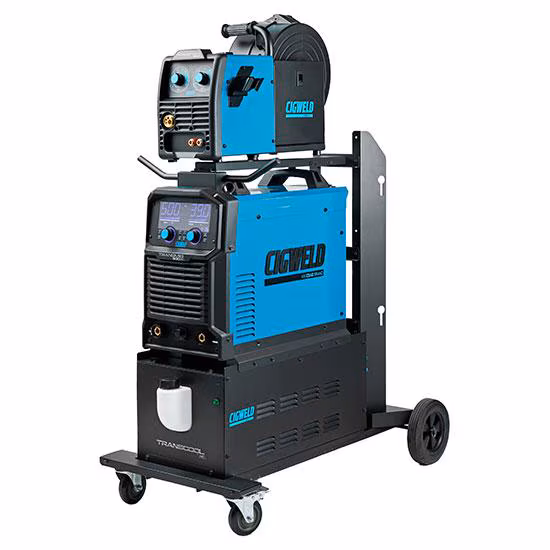

Transmig 500HD Package – Water Cooled (What’s in the box):

• Transmig 500HD Power Source
• Transfeed 4R HD Wire Feeder
• Transmig HD Trolley
• Transmig HD Water Cooler
• 10m water-cooled interconnection leads
• TW4 Flame Water Cooled MIG Gun (4m)
• Work return lead (10m, 70mm²)
• BlueJet Argon Regulator (45 LPM, 2 gauge)
•  Feed rolls:
– 1.2/1.6mm V Groove (installed)
– 0.8/0.9mm V Groove (spare)
– 1.2/1.6mm Knurled (spare)

Warranty: 5-Year Conditional Warranty

Applications & Welding Processes:

• MIG welding (Gas Shielded & Gasless)
• Pulse MIG welding
• STICK / SMAW welding
• DC Lift TIG welding
• Arc gouging up to 9.5mm carbons

Compatible Materials:

• Mild steel
• Structural steel
• Stainless steel
• Flux-cored wire applications
• Aluminium (with correct consumables and setup)

Key Features of Transmig 500HD:

• High-performance 500A output with duty cycles of 500A @ 80% and 447A @ 100%
• Water-cooled system configuration
• Multiprocess capability (MIG, STICK, TIG)
• Pulse MIG function for enhanced arc control and reduced spatter
• 16 programmable memory settings for repeatable welds
• Large 32mm digital display for clear visibility
• Heavy-duty 4-roll geared wire feed system
• MIG crater fill function (2T & 4T modes)
• Adjustable burnback control
• Integrated VRD for safer STICK welding
• Hot Start and Arc Force adjustments
• Supports 300mm MIG wire spools (includes 200mm spool adapter)
• Industrial trolley with storage drawer and G-size cylinder holder
• Energy-efficient inverter technology

Technical Specifications:

• Input Voltage: 415V | Three Phase
• Frequency: 50/60Hz
• Plug Type: 32A fitted plug
• Welding Current Range:
   – MIG: 30–500A
   – STICK: 10–500A
   – TIG DC Lift: 10–500A
• Duty Cycle:
   – 500A @ 80%
   – 447A @ 100%
• Generator Compatibility: Minimum 35kVA recommended
• Cooling System: Water cooled
• Protection Rating: IP21S
• Material Thickness Capability:
   – MIG/TIG: 1.0mm–20mm
   – STICK: 1.6mm–25mm
• VRD: Yes
• Gouging Capacity: Up to 9.5mm carbons

Compliance & Certifications:

• AS 60974.1:2020
• IEC 60974-5:2019
• IEC 60974-2:2019
• EN 60974-10:2021
