Name: BOC Smoothcut Plasma 25 Torch for MAGCUT25 and CUT40 - Oxygen Machine
SKU: BOC25/706HT

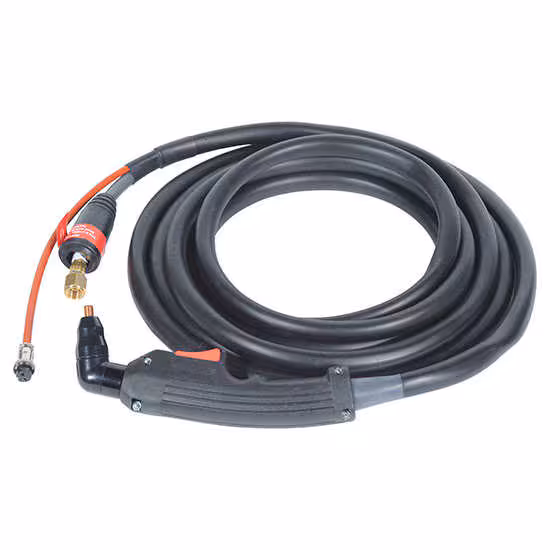

BOC Smoothcut Plasma 25 Torch for MAGCUT25 and CUT40

Part No. : BOC25/706HTBOC25/706HT

The Smoothcut Plasma 25 torch is a 6m torch designed for use with the Magmate CUT25 and Smoothcut Plasma 40 Plasma Cutters.

The Smoothcut Plasma 25 torch is a 6m torch designed for plasma cutting applications up to 40 amps, and for contact cutting up to 9mm in thickness. This torch is fitted with a two part connector and is suitable for use with the Magmate Cut 25 Plasma Power Source (MAGCUT25) and the older style Smoothcut Plasma 40 Power Source with a two part connector (CUT40).

Gas/air flowrate: 100L/min
Duty Cycle: 60% @ 40A
Maximum current: 40A
Cooling requirement: Air
Gas type: Air or Nitrogen
Gas/air operating pressure: 4.8 – 5.0 bar
