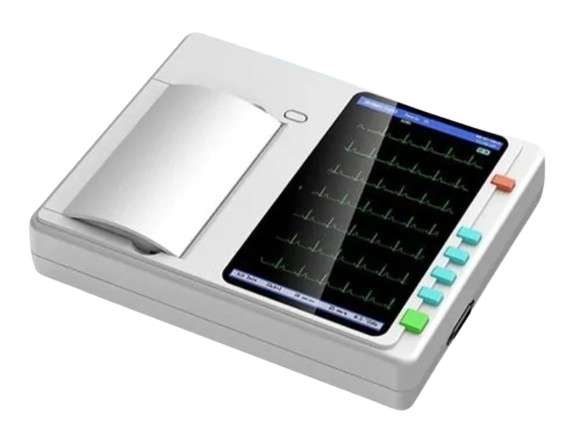

6 Channel Digital Portable ECG MAS-1206A

Description

Digital 6 channel ECG machine (12 lead, 7inch touch screen)
Technical Specifications

Model

HE-301

HE-601

Channel

3��Channels

6��Channels

Lead

Standard 12 leads

Standard 12 leads

Acquisition Mode

Simultaneous 12 leads acquisition

Simultaneous 12 leads acquisition

Measurement Range

��5mVpp

��5mVpp

Input Impedance

���50M��

���50M��

Input circuit current

���0.05��A

���0.05��A

CMRR

>100dB

>100dB

Patient leak current

���10��A (220V-240V)

���10��A (220V-240V)

Frequency Response

0.05Hz~150Hz (-3dB)

0.05Hz~150Hz (-3dB)

Paper specification

Roll 80mmx20M

Roll 110mmx20M

Safety Standard

IEC I/CF

IEC I/CF

Sample Rate

Normal: 1000sps/channel

Normal: 1000sps/channel

Power Supply

AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery

AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery
