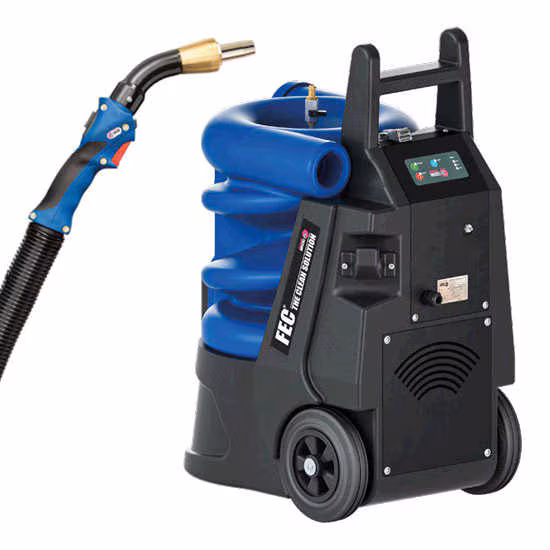

Abicor-Binzel Fume Extraction System 240V With Cyclone Technology Package

The mobile fume extraction system FEC combines the highest suction output and intelligent energy-efficient functions with simple handling and also offers numerous advantages over standard suction devices:

• Cyclone technology for particle pre-separation to protect the filter surface – reduced cleaning • intervals Integrated filter cleaning concept – permanent filter can be cleaned easily and quickly
• Contamination-free waste disposal of the welding dust by encapsulated de-dusting system and bag
• With 25 kg and smooth-running full-cushion wheels perfect for variable application sites
• Robust & quiet due to thick-walled plastic case Integrated automatic start-stop system reduces operation expenses and wear
• Optional with start-stop-measuring caliper

Technical Data

• Weight: approx. – 25 kg Max.
• Air flow: 230 m³/ h
• Connection diameter: 50 mm
• Max. vacuum: 19,000 Pa
• Noise level: 76 dB(A)
• Voltage: 230 V, 50Hz
• Engine performance: 1.1 kWFilter: permanent filter dust class M, 0.8 m²
• Dimensions: length 590 mm; width 425 mm; height 825 mm

​
